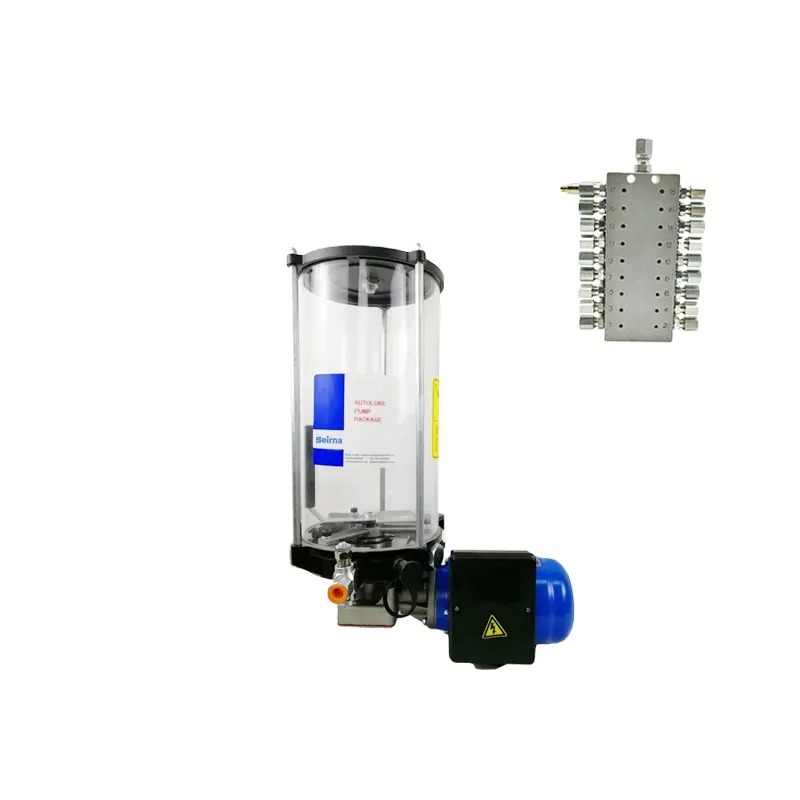

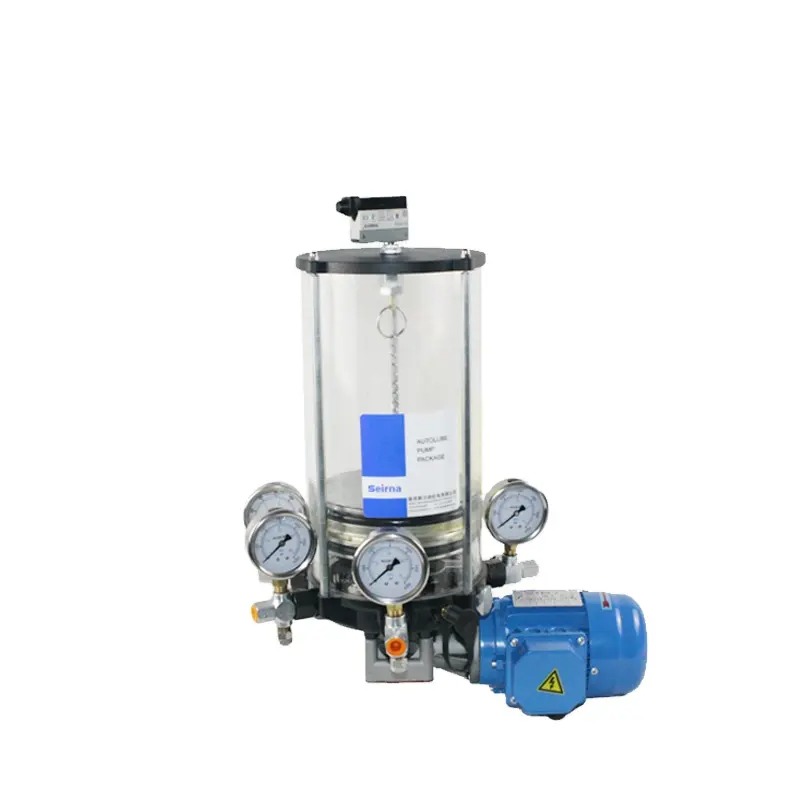

EMB Model Electric Grease Pump

for progressive lubrication systems

Scope of Application

EMB type lubrication pump is a small multi-outlet electric lubrication pump. The pump 4L or more oil pump with oil pressure plate, able to transport high viscosity grease. Widely used in cranes, forging machine tools, engineering machinery, construction machinery, transportation vehicles, rubber machinery, light industry, environmental protection and other machinery.

Performance and Features

1. The motor drives the reducer, and the reducer drives the eccentric wheel to make the plunger make linear reciprocating motion in the pump body to realize the oil suction and discharge process in turn.

2. There are 5 independent pumping units (5 oil outlets), and can be arbitrarily selected (must be specified when ordering).

3. Pressure up to 25MPa, each outlet is equipped with a safety valve to prevent pressure overload of the pump unit.

4. It can be composed of progressive grease lubrication system with progressive distributor according to needs.

5. Equipped with low liquid level switch to realize low liquid level alarm.

6. A variety of volume tanks to choose from, oil tanks have metal and plastic tanks to choose from.

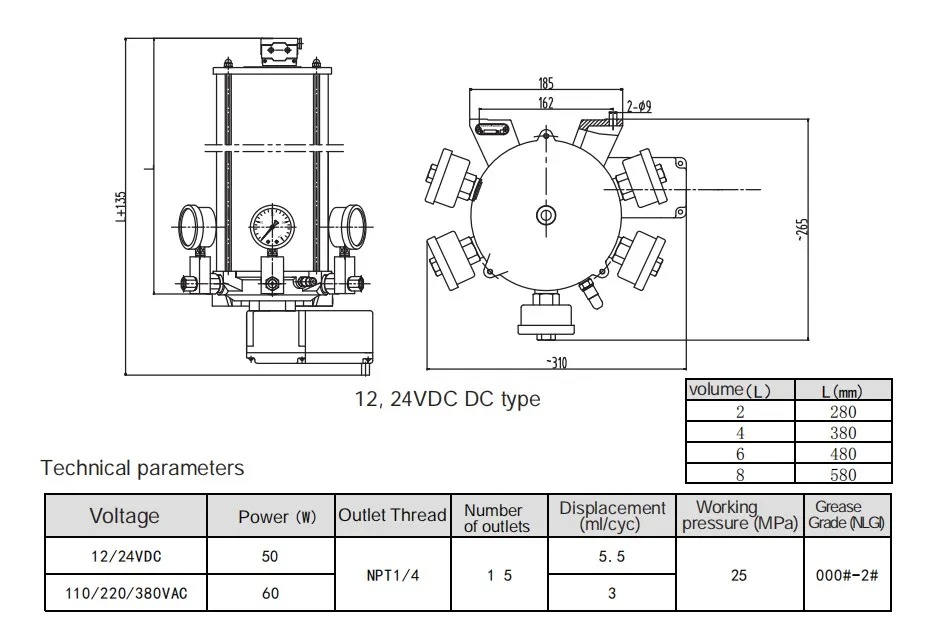

Dimensional Drawing 12/24VDC &Parameters

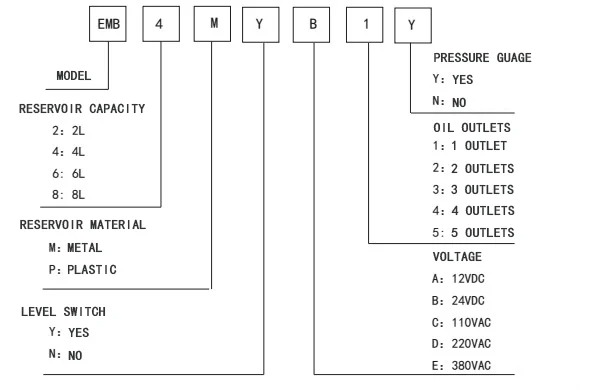

Selection table
